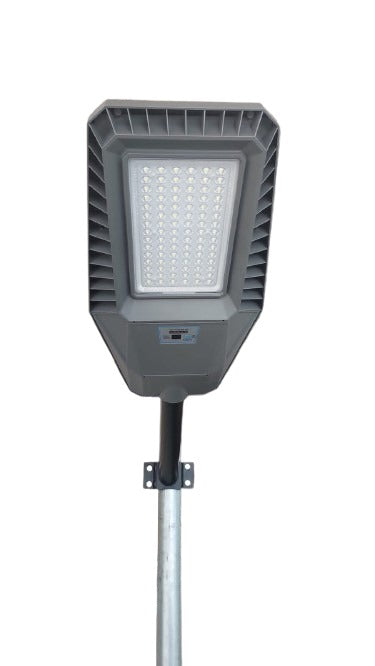

Solar Owl Street Light 100 Watt - TTOWL100W

The TTOWL100W is an all-in-one Owl fixture for lanes, compounds and society side roads. Panel, battery, LED and motion sensor sit in one sealed housing at the pole top.

Coverage and sizing

Designed for a 5 m mounting height with poles at about three times that — roughly 12 to 15 m pole to pole. At 1,400 lumens this fixture suits a lane or compound rather than a full carriageway; for a wider road the TTOWL90W or TTOWL120W is the better choice.

What is inside

100 W Philips LED across 90 chips, producing 1,400 lumens, on a 10 Ah LiFePO4 battery charged by an integrated 11 W panel. LiFePO4 service life is 8 to 12 years. Size from the lumen figure rather than the wattage: lumens are what reach the road, and they are what decide whether a given pole spacing works.

The motion sensor

Dimmed baseline with ramp to full on detection, returning to dim after a hold period. With a 10 Ah pack this duty cycle is what allows a full night of operation, so the sensor is integral to the design rather than a convenience feature.

Installation and warranty

One pole-top bracket, no cabling, no grid connection and no DISCOM approval. Automatic dusk-to-dawn operation. Confirm the pole top has clear midday sun: the integrated 11 W panel leaves little margin for a shaded position.
